Technical Information Of Combustion Tester Of Automotive Interior

2016-06-02 16:31:08



1. product name : Combustion  Tester  Of  Automotive  Interior

2. Product number:QCS-3

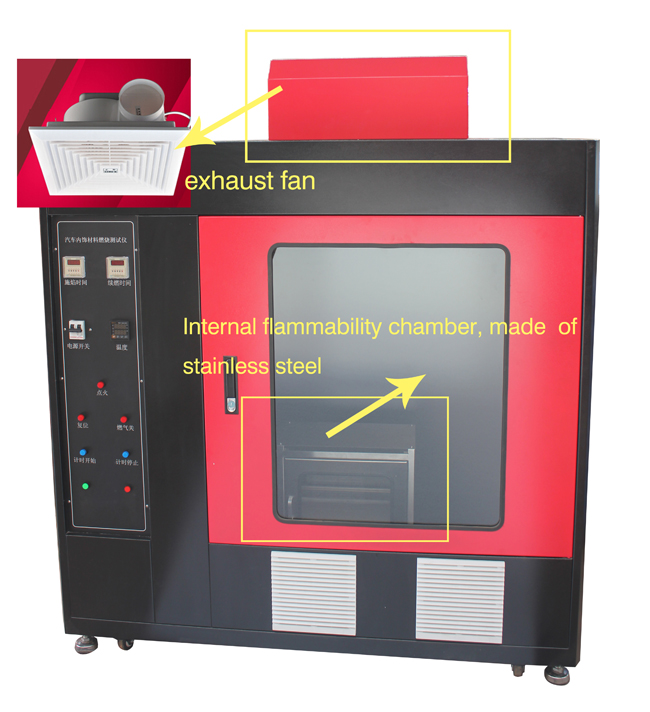

Combustion  Tester  Of  Automotive  InteriorQCS-3汽车内饰燃烧燃烧试验仪




3. Introduction: It is  used for qualitative assessment of the fuel of automotive interior materials  and  applies to all types of automotive interior materials.

4. Working conditions:

① Ambient temperature:-5-30

② Relative humidity:85%

③ power supply:220V+ 10%

④ Power:100W

⑤ Gas source:Liquefied petroleum gas

⑥ Stopwatch accuracy : not less than 0.5s

⑦ The time of the flame of a burner to the test specimen:15s

⑧ Burner:Internal Diameter:9.5mm+ 0.1mm,Length : 100mm

⑨ Test Angle:The lamp is 90 degrees vertical to the horizontal placed in the sample combustion

⑩ Flame height: 20mm + 2mm to 100mm + 2mm adjustable (generally adjustable to 38mm)

11 Applying the flame time: 0-999.9s + 0.1s can be adjusted (generally selected as 15s)

12 Burning time: 0-999.9s + 0.1s, observe the flame to the first line after the manual start, manual pause

13 Temperature range:0 ~ 200, display  real-time test temperatureDisplay test conditions within the studio internal temperature, can be customized environmental temperature control, higher than 34 degrees can not be started

5. Composition:

① Equipment control part and the hood is togethercombustion chamber is built

② Ignition systemPressure automatic

③ Automatic intake and exhaust system (gas automatically open, automatically shut down)

④ Have ventilation and lighting

⑤ U-bracket: stainless steel

⑥ Heat-resistant metal wire groove spacing 25mm size 0.5mmX0.5mm

⑦ Temperature measurement range0-200℃

⑧ Flame Ruler Accuracy: 0.1mm

⑨ Equipment Dimensions: L * W * H 1310 * 650 * 1560mm (including feet)

⑩ Combustion test area volume:> 0.75 cubic meters long * width * height of about 1050mm × 640mm × 1300mm, black background, the background illumination ≤20Lux

6. Design standard:

GB8410-2006Flammability of automotive interior materials

FMVSS 571.302

TL1010

DIN7520

相关产品:QCS-3型汽车内饰材料燃烧试验仪
