ul94水平垂直燃烧仪技术参数英文版(CZF-5型水平垂直燃烧测定仪)英文技术参数

2015-01-30 10:11:55

    主要内容为炯雷仪器出产UL94标准的CZF-5水平垂直燃烧测试仪的主要技术参数英文版,敬请有需要的客户自行采用,对其他厂家生产的类似水平垂直燃烧测试仪的技术指标仅有参考作用。

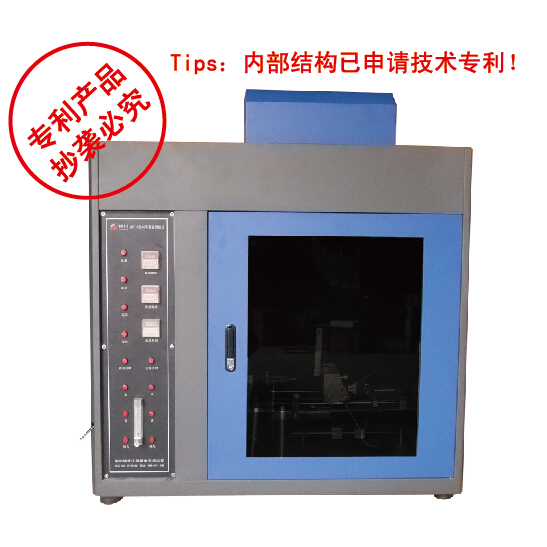

             钢板喷塑款UL94塑料水平垂直燃烧仪

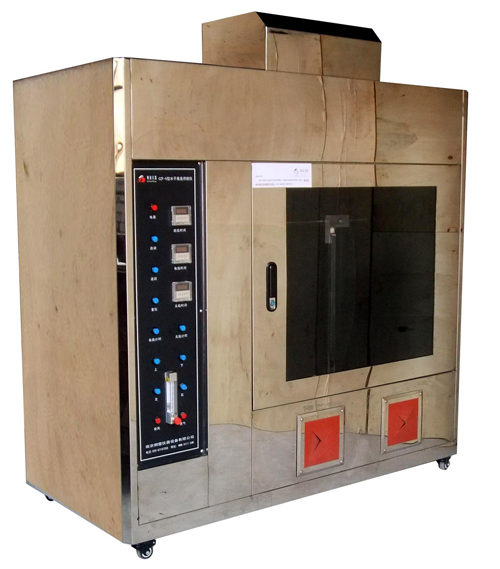

            不锈钢款UL94塑料水平垂直燃烧仪

Product Name: Horizontal and vertical burning tester

Product Model:CZF-5

Design Standards GB/T2408-2008 Plastics. Determination of burning characteristics. Horizontal and vertical test

Brief Introduction :That horizontal and vertical burning tester is designed according to the chinese national standard《 GB/T2408-2008  Plastics. Determination of burning characteristics. Horizontal and vertical test》and meet the requirements of it completelyBoth the horizontal and vertical burning test  can be completed in this machineThe test data can be recorded and saved automatically。It is also  suitable for the chinese national standard《 GB/T 5455 Textiles. Burning behaviour. Vertical method 》.And unlike the CZF-3 tester ,it,s  more sophisticated and more automated The burning body is 0.5m³and that is larger than the CZF-3 tester。By the way, 0.5m³ is in accordance with UL94-2006 and GB-T2408-2008

Design standard of the  horizontal and vertical burning tester

GB-T2408-2008《  Plastics. Determination of burning characteristics. Horizontal and vertical test

The standard can be meet: UL94-2006、GB-T 5455 、 GB-T13488 、GB-T5169、 IEC60695-11-3、IEC60695-11-4、IEC60950-1、IEC695-2-2

(一)The  environmental requirements

1. Requirements about environmental temperature  -10℃~30℃

2. Relative humidity:≤85%

3. Supply voltage and power:220V±10% ,  50HZ  150W

(二)Characteristic

1.The diameter of the burner is 9.5mm+0.3mmThe diameter ofthe Bunsen burner is 9.5mm±0.5mm

2.There is a screw nut on the bunsen burner used to control the height of  blue flame

3.The auto-ignition time of the bunsen burner can be set up arbitrarily

4.its tilt angle is between  0° and45°,EachInterval can be tilted 5 degrees automatically

5.You can djust the flame height between 20mm + 2mm and 100mm + 10mm

6.The bunsen burner move to the bottom of the test sample quickly  through the motor

7.The bunsen burner  return  automatically when the flame application completed

8.The flame applying time  of  the bunsen burner is between0~999.9S+0.1s and it can set up  automatically  within that bandthe flame can set up between 20 and 175mm

9. The  afterflame time  can set up between 0 to 999.9S+0.1s and the tester will keep the minutes  automatically in additionyou can  pause it manually

10.The  residual burning time can set up between 0 and 999.9S+0.1s and the tester will keep the minutes  automatically in additionyou can  pause it manually

11.The source can sue 98% methane natural gas liquefied petroleum gas or  coal gas

12. Flux of the  methane can set up between 105ml/min and1000ml/min

13.electronic switch is  set on the gas pipeline

14.You should close the  The gas switch on the  panel when the test is  finisharound this time the bunsen burnerwill in time go out of itself

15. The burning body is 0.5m³and it has a black  background the  background illumination  must be 20Lux or less 。Moreover we also have 0.75m³ burning body if it is  in need

the upper and lower left and right travel of  the sample frame must be 300mm or more  。There is a servo motor cotrol  the horizontal and vertical  distance   from test sample and  the flame

15. The  flue gas  will  be discharged  by the ventilating fan who is   on the experimental box top when  the test finish

16.The whole test process is automatically controlled and the ventilation system is independent
